ViTAM-917AP

Features
17” New Generation Stainless Steel Panel PC
6th Gen. Intel Core i3/i5 BGA type Processor
True Flat Front Bezel Design and Grade 304 Stainless Steel Enclosure
(Grade 316 for Option)
IP66/IP69K Rated with M12 Connectors
Support Resistive Touch, Projected Capacitive Touch, and Glass
Touch on/off Button on the Side Edge for Hygienic Cleaning
Support Ergonomic Versatile Mounting: Yoke Mounting /
Space-saving VESA 75 x 75 mm Mounting

Specifications
System
CPU
Core i5-6300U, 3M Cache, up to 3.00 GHz
Core i3-6100U, 3M Cache, up to 2.30 GHz
System Chipset
SoC
Memory
1 x 260-pin SO-DIMM up to 16GB DDR4 2133MHz
IO Port
USB
1 x M12 8-pin for USB 2.0 with waterproof cover and chain
Serial / Parallel
1 x M12 8-pin COM1, RS-232/422/485, default RS-232, with
waterproof cover and chain
LAN
1 x M12 8-pin for LAN with waterproof cover and chain
Others
1 x Touch on/off button at the side
Power Connector
1 x M12 3-pin for DC power with waterproof cover and chain
1 x Power switch on the rear
Option
2 x optional blank M12 connector with waterproof cover and chain for selecting two from the following options:
2 x USB 2.0
1 x USB 3.0
1 x LAN (POE for option)
1 x COM
1 x CAN

Storage Space
HDD
1 x 2.5" SATA3 HDD
Expansion
Expansion slot
1 x Full-size mini-PCIe socket (PCIe + USB) for WIFI/BT/LTE(optional)
RFID module
RFID module design on the front side(optional)
Dispalay
Display Type
Max. Resolution
Max. Color
Luminance (cd/m2)
View Angle
Contrast
Backlight Lifetime
Standard
17” TFT-LCD
1280 x 1024
16.7M
350
160(H) /140(V)
800:1
50,000 hrs
High Brightness Optional
17” TFT-LCD
1280 x 1024
16.7M
1000
170(H) /160(V)
800:1
50,000 hrs

Touch Screen
Type
Resistive Touch(For AR model)
Projected Capacitive(For AP model)
Glass(For AG model)

Interface
USB

Light Transmission(%)
Resistive Touch : 80%
Projected Capacitive : 90%

Power
Power Input DC 9~36V
Power Consumption ViTAM-917AP:49W

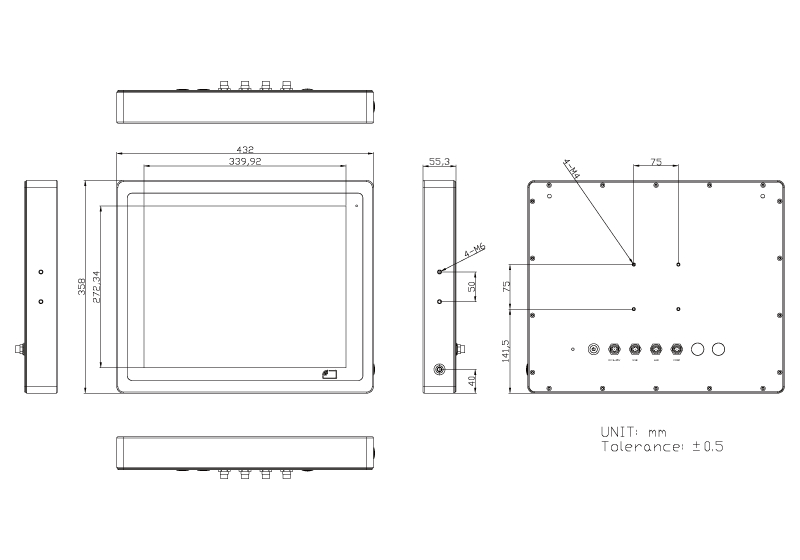

Dimensions
Mechanical
Construction
304 Stainless steel chassis(default), 316 Stainless steel
chassis(optional)
Mounting
VESA mount 75 x 75, Yoke mount for optional
IP Rating
Total IP66/IP69K
Dimensions
432 x 358 x 55 mm
Net Weight
8.2 kg

Environmental
Operating Temperature: 0~50°C
Storage Temperature: -30~70°C
Humidity: 10 to 95% @ 40°C, non-condensing
Certificate: CE/FCC Class A

Operating System Support
ViTAM-917AP
17" SXGA IP66/IP69K stainless steel panel pc, Intel 6th Gen. Core i
Processor, 1 x SO-DIMM DDR4 slot, 32G MLC SSD, projected
capacitive touch, 9~36V DC power input with Adapter

ViTAM-917AR
17" SXGA IP66/IP69K stainless steel panel pc, Intel 6th Gen. Core i
Processor, 1 x SO-DIMM DDR4 slot, 32G MLC SSD, 5 wire resistive
touch window, 9~36V DC power input with Adapter

ViTAM-917AG
17" SXGA IP66/IP69K stainless steel panel pc, Intel 6th Gen. Core i
Processor, 1 x SO-DIMM DDR4 slot, 32G MLC SSD, protection glass,
9~36V DC power input with Adapter

ViTAM-917APH
17" SXGA IP66/IP69K stainless steel panel pc, Intel 6th Gen. Core i
Processor, 1 x SO-DIMM DDR4 slot, 32G MLC SSD, projected
capacitive touch, 9~36V DC power input with Adapter, 1000 nits

ViTAM-917ARH
17" SXGA IP66/IP69K stainless steel panel pc, Intel 6th Gen. Core i
Processor, 1 x SO-DIMM DDR4 slot, 32G MLC SSD, 5 wire resistive
touch window, 9~36V DC power input with Adapter, 1000 nits

ViTAM-917AGH
17" SXGA IP66/IP69K stainless steel panel pc, Intel 6th Gen. Core i
Processor, 1 x SO-DIMM DDR4 slot, 32G MLC SSD, protection glass,
9~36V DC power input with Adapter, 1000 nits
