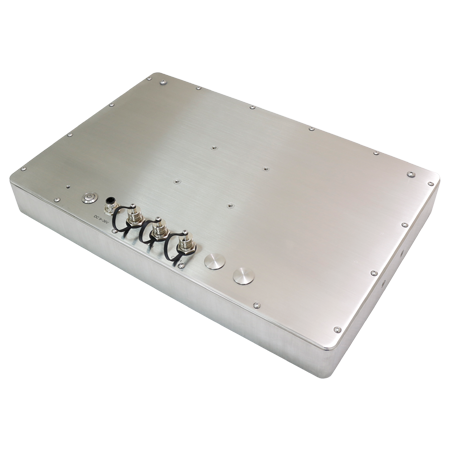

ViTAM-916P

ViTAM-916P

Features

  • 15.6” New Generation Stainless Steel Panel PC
  • Onboard 4th Gen. Intel Core i3/i5 Processor
  • True Flat Front Bezel Design and Grade 304 Stainless Steel Enclosure (Grade 316 for Option)
  • IP66/IP69K Rated with M12 Connectors
  • Support Resistive Touch, Projected Capacitive Touch, and Glass
  • Touch on/off Button on the Side Edge for Hygienic Cleaning
  • Support Ergonomic Versatile Mounting: Yoke Mounting / Space-saving VESA 75 x 75 mm Mounting

Specifications

System

  • CPU  Core i5-4300U, 3M Cache, up to 2.9 GHz Core i3-4010U, 3M Cache, up to 1.7GHz
  • System Chipset SOC
  • Memory  Onboard 4GB DDR3L SDRAM , up to 8GB(option)

IO Port

  • USB  1 x M12 8-pin for USB 2.0 with waterproof cover and chain
  •  Serial/Parallel  1 x M12 8-pin COM1, RS-232/422/485, default RS-232, with waterproof cover and chain
  • LAN 1 x M12 8-pin for LAN with waterproof cover and chain
  • Others 1 x Touch on/off button at the side
  • Power Connector 1 x M12 3-pin for DC power with waterproof cover and chain 1 x Power switch on the rear
  • Option  2 x optional blank M12 connector with waterproof cover and chain for selecting two from the following options: 2 x USB 2.0 1 x USB 3.0 1 x LAN (POE for option) 1 x COM 1 x CAN

Storage Space

  • HDD 1 x 2.5" SATA3 HDD

Expansion

  • Expansion slot 1 x Full-size mini-PCIe socket (PCIe + USB) for WIFI/BT/LTE(optional)
  • RFID module RFID module design on the front side(optional)

Display

Display Type

  • Standard 15.6” TFT-LCD
  • High Brightness Optional  15.6” TFT-LCD

Max. Resolution

  • Standard  1366 x 768
  • High Brightness Optional  1366 x 768

Max. Color

  • Standard  16.7M
  • High Brightness Optional  16.7M

Luminance (cd/m2)

  • Standard 350
  • High Brightness Optional  1000

View Angle

  • Standard 160(H) /160(V)
  • High Brightness Optional 170(H) /170(V)

Contrast

  • Standard  500:1
  • High Brightness Optional  800:1

Backlight Lifetime

  • Standard  50,000hrs
  • High Brightness Optional  50,000 hrs

Touch Screen

  • Type  Resistive Touch (For R model) Projected Capacitive Touch (For P model) Glass (For G model)
  • Interface USB
  • transmission (%) Resistive Touch : 80% Projected Capacitive : 90%

Power

  • Power input DC 9~36V
  • Power Consumption  ViTAM-916P:26W

Mechanical

  • Construction 304 Stainless steel chassis(default), 316 Stainless steel chassis(optional)
  • Mounting VESA mount 75 x 75, Yoke mount for optional
  • IP Rating Total IP66/IP69K
  • Dimensions 440 x 290 x 55 mm
  • Net weight(Kgs) 7.2 kg

Environment

  • Operating temperature   0~50°C / -20~60°C (option)
  • Storage temperature-   -30~70°C
  • Storage humidity  10 to 95% @ 40°C, non- condensing
  • Certification   CE/FCC Class A

Operating System Support

  • Windows Embedded 7, Windows Embedded 8.1, Windows 10 IoT ENT LTSB

Ordering Information

  • ViTAM-916P  15.6" WXGA IP66/IP69K stainless steel panel pc, Intel 4th Gen. Core i Processor, 4GB DDR3L RAM, 32G MLC SSD, projected capacitive touch, 9~36V DC power input with Adapter
  • ViTAM-916R  15.6" WXGA IP66/IP69K stainless steel panel pc, Intel 4th Gen. Core i Processor, 4GB DDR3L RAM, 32G MLC SSD, 5 wire resistive touch window, 9~36V DC power input with Adapter
  • ViTAM-916G  15.6" WXGA IP66/IP69K stainless steel panel pc, Intel 4th Gen. Core i Processor, 4GB DDR3L RAM, 32G MLC SSD, protection glass, 9~36V DC power input with Adapter
  • ViTAM-916PH  15.6" WXGA IP66/IP69K stainless steel panel pc, Intel 4th Gen. Core i Processor, 4GB DDR3L RAM, 32G MLC SSD, projected capacitive touch, 9~36V DC power input with Adapter, 1,000 nits LCD
  • ViTAM-916RH  15.6" WXGA IP66/IP69K stainless steel panel pc, Intel 4th Gen. Core i Processor, 4GB DDR3L RAM, 32G MLC SSD, 5 wire resistive touch window, 9~36V DC power input with Adapter, 1,000 nits LCD
  • ViTAM-916GH  15.6" WXGA IP66/IP69K stainless steel panel pc, Intel 4th Gen. Core i Processor, 4GB DDR3L RAM, 32G MLC SSD, protection glass, 9~36V DC power input with Adapter, 1,000 nits LCD
