ViTAM 815P
Features
- 15” New Generation Stainless Steel Panel PC
- Intel Celeron N2930 1.83GHz Onboard Processor
- True Flat Front Bezel Design and Grade 304 Stainless Steel Enclosure (Grade 316 for Option)
- IP66/IP69K Rated with M12 Connectors
- Support Resistive Touch, Projected Capacitive Touch, and Glass
- Touch on/off Button on the Side Edge for Hygienic Cleaning
- Support Ergonomic Versatile Mounting: Yoke Mounting / Space-saving VESA 75 x 75 mm Mounting
Specifications
System
- CPU Celeron N2930 Processor(2M Cache,1.83GHz)
- System Chipset SOC
- Memory Onboard 4GB DDR3L SDRAM , up to 8GB(option)
IO Port
- USB 1 x M12 8-pin for USB 2.0 with waterproof cover and chain
- Serial/Parallel 1 x M12 8-pin COM1, RS-232/422/485, default RS-232, with waterproof cover and chain
- LAN 1 x M12 8-pin for LAN with waterproof cover and chain
- Others 1 x Touch on/off button at the side
- Power Connector 1 x M12 3-pin for DC power with waterproof cover and chain 1 x Power switch on the rear
- Option2 x optional blank M12 connector with waterproof cover and chain for selecting two from the following options: 2 x USB 2.0 1 x USB 3.0 1 x LAN (POE for option) 1 x COM 1 x CAN
Expansion
- On board expansion bus 1 x Mini PCIe full size slot on board Option wifi/BT or 3G with Antenna 1 x Mini PCIe full size slot on board Option isolation 2 x RS-422/485 isolation
Storage Space
- HDD 1 x 2.5" SATA3 HDD
Expansion
- Expansion slot 1 x Full-size mini-PCIe socket (PCIe + USB) for WIFI/BT/LTE(optional)
- RFID module RFID module design on the front side(optional)
Display
Display Type
- Standard 15” TFT-LCD
- High Brightness Optional 15” TFT-LCD
Max. Resolution
- Standard 1024 x 768
- High Brightness Optional 1024 x 768
Max. Color
- Standard 16.7M
- High Brightness Optional 262K / 16.2M (optional)
Luminance (cd/m2)
- Standard 300
- High Brightness Optional 1000
View Angle
- Standard 176(H) /176(V)
- High Brightness Optional 160(H) /160(V)
Contrast
- Standard 2000:1
- High Brightness Optional 800:1
Backlight Lifetime
- Standard 70,000 hrs
- High Brightness Optional 50,000 hrs
Touch Screen
Type Resistive Touch (For R model) Projected Capacitive Touch (For P model) Glass (For G model)
Interface USB
transmission (%) Resistive Touch : 80% Projected Capacitive : 90%
Power
- Power input DC 9~36V
- Power Consumption ViTAM-815P:19W
Mechanical
- Construction 304 Stainless steel chassis(default), 316 Stainless steel chassis(optional)IP rating Total IP66
- Mounting VESA mount 75 x 75, Yoke mount for optional
- IP Rating Total IP66/IP69K

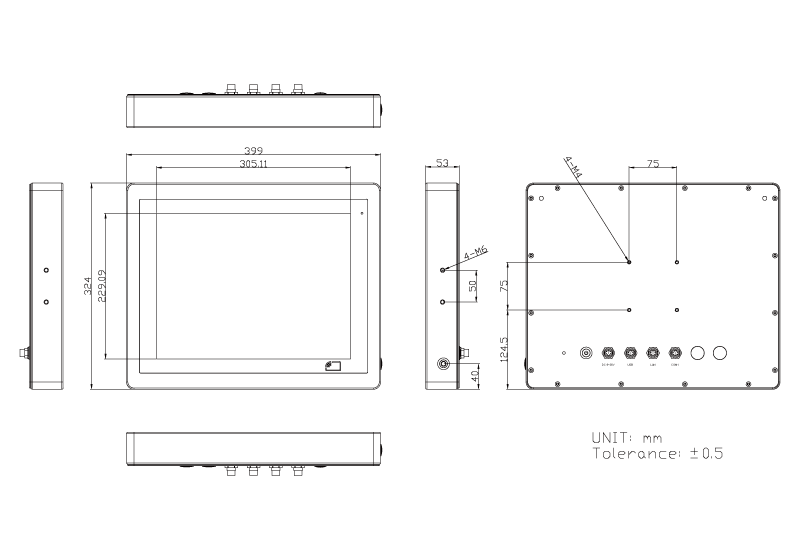

- Dimensions 399 x 324 x 53 mm
- Net weight(Kgs) 7.4 kg
Environment
- Operating temperature 0~50°C
- Storage temperature- 30~70°C
- Storage humidity 10 to 95% @ 40°C, non- condensing
- Certification CE/FCC Class A
Operating System Support
- Windows Embedded 7, Windows Embedded 8.1, Windows 10 IoT ENT LTSB
Ordering Information
- ViTAM-815P 15" XGA IP66/IP69K stainless steel panel pc, Celeron N2930 Processor, 4GB DDR3L RAM, 32G MLC SSD, projected capacitive touch, 9~36V DC power input with Adapter
- ViTAM-815R 15" XGA IP66/IP69K stainless steel panel pc, Celeron N2930 Processor, 4GB DDR3L RAM, 32G MLC SSD, 5 wire resistive touch window, 9~36V DC power input with Adapter
- ViTAM-815G 15" XGA IP66/IP69K stainless steel panel pc, Celeron N2930 Processor, 4GB DDR3L RAM, 32G MLC SSD, protection glass, 9~36V DC power input with Adapter
- ViTAM-815PH 15" XGA IP66/IP69K stainless steel panel pc, Celeron N2930 Processor, 4GB DDR3L RAM, 32G MLC SSD, projected capacitive touch, 9~36V DC power input with Adapter, 1,000 nits LCD
- ViTAM-815RH 15" XGA IP66/IP69K stainless steel panel pc, Celeron N2930 Processor, 4GB DDR3L RAM, 32G MLC SSD, 5 wire resistive touch window, 9~36V DC power input with Adapter, 1,000 nits LCD
- ViTAM-815GH 15" XGA IP66/IP69K stainless steel panel pc, Celeron N2930 Processor, 4GB DDR3L RAM, 32G MLC SSD, protection glass, 9~36V DC power input with Adapter, 1,000 nits LCD
