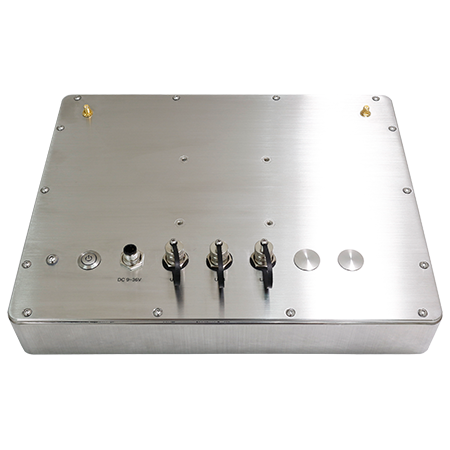

ViTAM 812P

ViTAM 812P

Features
  • 12.1” New Generation Stainless Steel Panel PC
  • Intel Celeron N2930 1.83GHz Onboard Processor
  • True Flat Front Bezel Design and Grade 304 Stainless Steel Enclosure (Grade 316 for Option)
  • IP66/IP69K Rated with M12 Connectors
  • Support Resistive Touch, Projected Capacitive Touch, and Glass
  • Touch on/off Button on the Side Edge for Hygienic Cleaning
  • Support Ergonomic Versatile Mounting: Yoke Mounting / Space-saving VESA 75 x 75 mm Mounting
Specifications
System
  • CPU  Celeron N2930 Processor(2M Cache,1.83GHz)
  • System Chipset SOC
  • Memory   Onboard 4GB DDR3L SDRAM , up to 8GB(option)
IO Port
  • USB  1 x M12 8-pin for USB 2.0 with waterproof cover and chain
  •  Serial/Parallel  1 x M12 8-pin COM1, RS-232/422/485, default RS-232, with waterproof cover and chain
  • LAN  1 x M12 8-pin for LAN with waterproof cover and chain
  • Others  1 x Touch on/off button at the side
  • Power Connector   1 x M12 3-pin for DC power with waterproof cover and chain 1 x Power switch on the rear
  • Option2 x optional blank M12 connector with waterproof cover and chain for selecting two from the following options: 2 x USB 2.0 1 x USB 3.0 1 x LAN (POE for option) 1 x COM 1 x CAN
Expansion
  • On board expansion bus 1 x Mini PCIe full size slot on board Option wifi/BT or 3G with Antenna 1 x Mini PCIe full size slot on board Option isolation 2 x RS-422/485 isolation
Storage Space
  • HDD 1 x 2.5" SATA3 HDD
Expansion
  • Expansion slot 1 x Full-size mini-PCIe socket (PCIe + USB) for WIFI/BT/LTE(optional)
  • RFID module RFID module design on the front side(optional)
Display
Display Type
  • Standard   12.1” TFT-LCD
  • High Brightness Optional   12.1” TFT-LCD
Max. Resolution
  • Standard  800 x 600 1024 x 768 (option)
  • High Brightness Optional  800 x 600 1024 x 768 (option)
Max. Color
  • Standard  262K / 16.2M (option)
  • High Brightness Optional  262K / 16.2M (option)
Luminance (cd/m2)
  • Standard  450 / 500 (option)
  • High Brightness Optional  1000
View Angle
  • Standard 160(H) / 150(V) 160(H) / 140(V) (option)
  • High Brightness Optional  160(H) / 150(V) 160(H) / 140(V) (option)
Contrast
  • Standard  1500:1 / 700:1 (option)
  • High Brightness Optional  700:1
Backlight Lifetime
  • Standard 50,000 hrs 30,000 hrs (option)
  • High Brightness Optional  50,000 hrs
Touch Screen
Type  Resistive Touch (For R model) Projected Capacitive Touch (For P model) Glass (For G model)
Interface  USB
transmission (%)   Resistive Touch : 80% Projected Capacitive : 90%
Power
  • Power input DC 9~36V
  • Power Consumption ViTAM-812P:21W
Mechanical
  • Construction  304 Stainless steel chassis(default), 316 Stainless steel chassis(optional)IP rating  Total IP66
  • Mounting VESA mount 75 x 75, Yoke mount for optional
  • IP Rating Total IP66/IP69K
  • Dimensions 335 x 265 x 53 mm
  • Net weight(Kgs)  5 Kgs
Environment
  • Operating temperature   0~50°C
  • Storage temperature-   30~70°C
  • Storage humidity  10 to 95% @ 40°C, non- condensing
  • Certification   CE/FCC Class A
Operating System Support
  • Windows Embedded 7, Windows Embedded 8.1, Windows 10 IoT ENT LTSB
Ordering Information
  • ViTAM-812P  12.1" SVGA IP66/IP69K stainless steel panel pc, Celeron N2930 Processor, 4GB DDR3L RAM, 32G MLC SSD, projected capacitive touch, 9~36V DC power input with Adapter
  • ViTAM-812R  12.1" SVGA IP66/IP69K stainless steel panel pc, Celeron N2930 Processor, 4GB DDR3L RAM, 32G MLC SSD, 5 wire resistive touch window, 9~36V DC power input with Adapter
  • ViTAM-812G   12.1" SVGA IP66/IP69K stainless steel panel panel pc, Celeron N2930 Processor, 4GB DDR3L RAM, 32G MLC SSD, protection glass, 9~36V DC power input with Adapter
  • ViTAM-812PH   12.1" SVGA IP66/IP69K stainless steel panel pc, Celeron N2930 Processor, 4GB DDR3L RAM, 32G MLC SSD, projected capacitive touch, 9~36V DC power input with Adapter, 1,000 nits LCD
  • ViTAM-812RH   12.1" SVGA IP66/IP69K stainless steel panel pc, Celeron N2930 Processor, 4GB DDR3L RAM, 32G MLC SSD, 5 wire resistive touch window, 9~36V DC power input with Adapter, 1,000 nits LCD
  • ViTAM-812GH   12.1" SVGA IP66/IP69K stainless steel panel panel pc, Celeron N2930 Processor, 4GB DDR3L RAM, 32G MLC SSD, protection glass, 9~36V DC power input with Adapter, 1,000 nits LCD
