ViTAM 615P

ViTAM 615P

Features
  • 15” New Generation Stainless Steel Panel PC
  • Freescale I.MX6 DualLite 1.0GHz Onboard Processor
  • True Flat Front Bezel Design and Grade 304 Stainless Steel Enclosure (Grade 316 for Option)
  • IP66/IP69K Rated with M12 Connectors
  • Support Resistive Touch, Projected Capacitive Touch, and Glass
  • TTouch on/off Button on the Side Edge for Hygienic Cleaning
  • Support Ergonomic Versatile Mounting: Yoke Mounting / Space-saving VESA 75 x 75 mm Mounting
Specifications
System
  • CPU  Freescale i.MX6 Dual Lite,ARM Cortex A9(2x Cores,1.0GHz)
  • System Chipset SOC
  • Memory   Onboard 1GB DDR3 SDRAM
IO Port
  • USB  1 x M12 8-pin for 2 x USB 2.0 with waterproof cover and chain
  •  Serial/Parallel  1 x M12 8-pin COM1, RS-232/422/485, default RS-232, with waterproof cover and chain
  • LAN 1 x M12 8-pin for LAN with waterproof cover and chain (PoE for option)
  • Others 1 x Touch on/off button at the side
  • Power Connector 1 x M12 3-pin for DC power with waterproof cover and chain 1 x Power switch on the rear
  • Option  2 x M12 blank for option 1 x CAN 1 x PoE
Storage Space
  • eMMC Onboard 4GB eMMC NAND Flash
Expansion
  • Expansion slot 1 x Full-size mini-PCIe socket (PCIe + USB) for WIFI/BT/LTE(optional)
  • RFID module RFID module design on the front side(optional)
Display
Display Type
  • Standard 15” TFT-LCD
  • High Brightness Optional   15” TFT-LCD
Max. Resolution
  • Standard  1024 x 768
  • High Brightness Optional  1024 x 768
Max. Color
  • Standard  16.7M
  • High Brightness Optional  16.7M
Luminance (cd/m2)
  • Standard 300
  • High Brightness Optional  1000
View Angle
  • Standard 176(H) / 176(V)
  • High Brightness Optional  160(H) / 160(V)
Contrast
  • Standard  1500:1 (SVGA) 700:1 (XGA)
  • High Brightness Optional  700:1 (XGA)700:1 (SVGA)
Backlight Lifetime
  • Standard  70,000hrs
  • High Brightness Optional  50,000 hrs
Touch Screen
Type  Resistive Touch (For R model) Projected Capacitive Touch (For P model) Glass (For G model)
Interface SPI(Resistive Touch) / USB(Projected Capacitive Touch)
transmission (%)   Resistive Touch : 80% / Projected Capacitive : 90%
Power
  • Power input DC 9~36V
  • Power Consumption  ViTAM-615P:12W
Mechanical
  • Construction  304 Stainless steel chassis(default), 316 Stainless steel chassis(optional)
  • Mounting VESA mount 75 x 75, Yoke mount (optional)
  • IP Rating Total IP66/IP69K

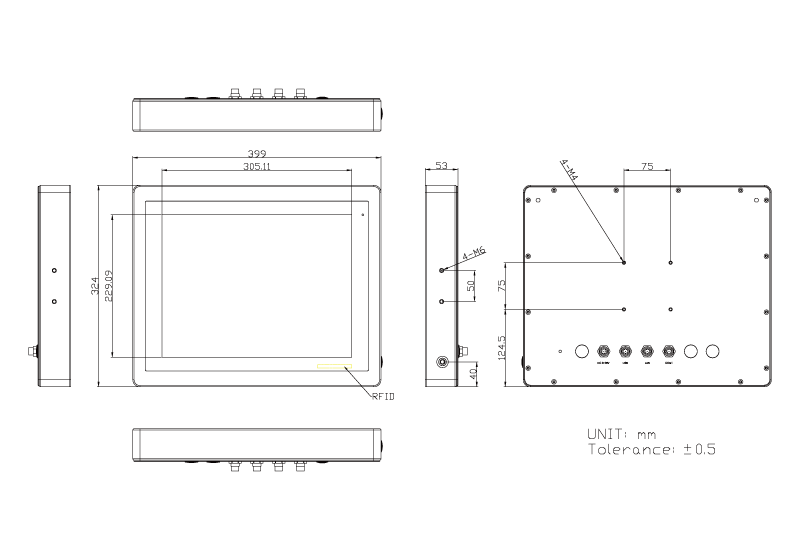

  • Dimensions 399 x 324 x 53 mm
  • Net weight(Kgs)  7.1 kg
Environment
  • Operating temperature   0~50°C / -20~60°C (option)
  • Storage temperature-   -30~70°C
  • Storage humidity  10 to 95% @ 40°C, non- condensing
  • Certification   CE/FCC Class A
Operating System Support
  • Android 6.0.1 / Linux kernel 4.9.88:Yocto + Chromium Browser V67
Ordering Information
  • ViTAM-615P  15" XGA IP66/IP69K stainless steel panel pc, Freescale i.MX6 Dual Lite ARM Cortex A9,1GB DDR3 RAM,4GB eMMCe, projected capacitive touch, 9~36V DC power input with Adapter
  • ViTAM-615R  15" XGA IP66/IP69K stainless steel panel pc, Freescale i.MX6 Dual Lite ARM Cortex A9,1GB DDR3 RAM,4GB eMMC, 5 wire resistive touch window, 9~36V DC power input with Adapter
  • ViTAM-615G   15" XGA IP66/IP69K stainless steel panel pc, Freescale i.MX6 Dual Lite ARM Cortex A9,1GB DDR3 RAM,4GB eMMCe, protection glass, 9~36V DC power input with Adapter
  • ViTAM-615PH   15" XGA IP66/IP69K stainless steel panel pc, Freescale i.MX6 Dual Lite ARM Cortex A9,1GB DDR3 RAM,4GB eMMCe, projected capacitive touch, 9~36V DC power input with Adapter, 1,000 nits LCD
  • ViTAM-615RH  15" XGA IP66/IP69K stainless steel panel pc, Freescale i.MX6 Dual Lite ARM Cortex A9,1GB DDR3 RAM,4GB eMMC, 5 wire resistive touch window, 9~36V DC power input with Adapter, 1,000 nits LCD
  • ViTAM-615GH  15" XGA IP66/IP69K stainless steel panel pc, Freescale i.MX6 Dual Lite ARM Cortex A9,1GB DDR3 RAM,4GB eMMCe, protection glass, 9~36V DC power input with Adapter, 1,000 nits LCD
