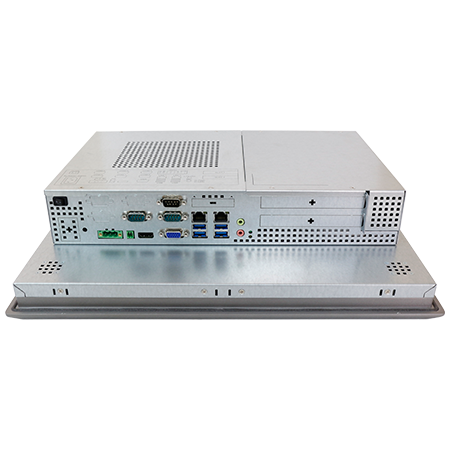

ViPAC-816P

ViPAC-816P

Features
  • 15.6” TFT LCD Panel PC
  • Intel Celeron N2930 Processor
  • Modular Concept and Fanless Design
  • Support PCT/RTW/AR Glass
  • Front Bezel IP66
  • Option WiFi/BT/Speaker
  • Support 2 x Expansion slot
  • DC 9~36V Power input, option AC power input
Specifications
System
  • CPU Onboard Intel Celeron N2930 Processor (2M Cache,1.83GHz)
  • System Chipset SoC
  • Memory 2 x 204-pin DDR3L SO-DIMM slot up to 8GB
IO Port
  • Rear side I/O port4 x USB 3.0 type A 2 x RJ45 GbE LAN 1 x DB9 RS-232/422/485 default RS-232 1 x DB9 RS-232 1 x DB9 RS-422/485 default RS-485 1 x DB15 VGA 1 x HDMI with Cover 1 x Line-out/Mic-in 1 x 2 pin Terminal block for external power switch 2 x LED indication for HDD/System 1 x System LED indication at front 1 x 3 pin TB Power connector 1 x Power Switch on/off
  • Option I/O  2 x 2W speaker at rear side 4 x USB 2.0 Type A via TB-546 2 x DB9 COM port 1 x 8-bit GPIO (3 in/out/VCC/GND)
Storage Space
  • HDD 1 x 2.5" SATA HDD Space (Easy Accessible Storage Design)
Expansion
  • Expansion Slot1 x Full-size Mini PCIe on board(PCIe/USB/SATA,SATA by default) 1 x Half-size Mini PCIe on board (PCIe/USB, PCIe by default) 1 x SIM slot for option(Option wifi/BT/4G and antenna at rear side) 1 x PCI and 1 x PCIe x1 slot via TB-560P1E11 (default)
Display
Display type
  • Standard  15.6” TFT-LCD
  •  High Brightness Optional  15.6” TFT-LCD
Max. Resolution
  • Standard  1366 x 768 1920 x 1080(option)
  •  High Brightness Optional  1366 x 768
Max. Color
  • Standard  16.7M
  •  High Brightness Optional   16.7M
Luminance (cd/m2)
  • Standard  300(typ) / 240(Min)
  •  High Brightness Optional  1000
View Angle
  • Standard  160(H) / 160(V)
  • High Brightness Optional  100 160(H) / 160(V)
Contrast
  • Standard  5000:1
  • High Brightness Optional  500:1
Backlight Lifetime
  • Standard   50,000 hrs
  • High Brightness Optional  50,000 hrs
Option
  • Standard   Auto Dimming
  • High Brightness Optional  Auto Dimming
Touch Screen
Type  Resistive Touch (for R model) Projected Capacitive Touch (for P model) Glass (for G model)
Interface  USB
transmission (%)    Resistive Touch : 80% Projected Capacitive : 90%
Power
  • Power input DC 9~36V Power input, option AC power input
Mechanical
  • Construction  Aluminum die-casting front bezel and steel chssis Stainless front bezel (option)
  • IP rating  Front Panel IP66
  • Mounting   Panel Mount
  • Dimension(mm)  412 x 277.5 x 96 mm
  • Net weight(Kgs)   6.5 kg
Environment
  • Operating temperature(°C)   0~50°C / -20~60°C (option)
  • Storage temperature(°C)   -30~70°C
  • Storage humidity   0 to 90%@ 40℃, non-condensing
  • Certification   CE/FCC Class A
Operating System Support
  • Windows embedded 7
  • Windows embedded 8.1
  • Windows 10 IoT Enterprise
Ordering Information
  • ViPAC-816R  15.6" WXGA Intel Celeron N2930 (1.83.GHz ) CPU, Fanless panel PC, 2 x 204pin DDR3L SO-DIMM slot, 1 x 2.5" HDD/SSD space, 2 x PCIex1 slot, resistive touch window, 9~36VDC power input with adaptor, Alu.die-casting front bezel.
  • ViPAC-816P  15.6" WXGA Intel Celeron N2930 (1.83.GHz ) CPU, Fanless panel PC, 2 x 204pin DDR3L SO-DIMM slot, 1 x 2.5" HDD/SSD space, 2 x PCIex1 slot, projected capacitive touch, 9~36VDC power input with adaptor,  Alu.die-casting front bezel.

click here for details
