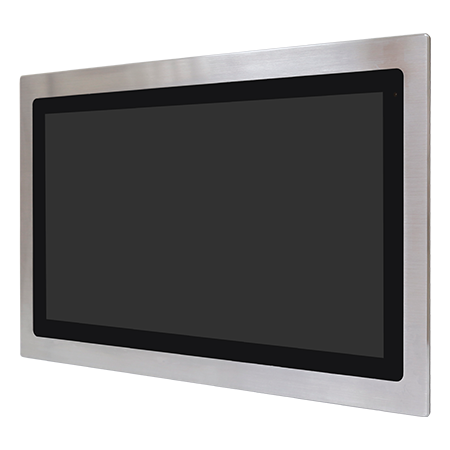

FABS-921AP

FABS-921AP

Features
  • 21.5” Food Industrial Panel PC
  • Flat front panel touch screen
  • Fanless design
  • 6th/7th Gen. Intel Core i3/i5/i7 Processors
  • DDR4 SO-DIMM Socket
  • Wide range DC 9~36V power input
Specifications
System
  • CPU 6th/7th Gen. Intel Core i3/i5/i7 Processors
  • System Chipset   SoC
  • Memory 1 x 260 pin SO-DIMM DDR4 up to 16GB 2133MHz
External IO Port
  • USB 2 x USB 3.0 type A
  • Serial / Parallel  1 x RS-232/422/485 DB-9, default RS-232(COM1) 1 x RS-232 DB-9(COM2)
  • LAN 1 x 10/100MB LAN RJ-45 (POE for option)
  • Audio 1 x Line-out
  • Power 1 x 3-pin DC Power input terminal 1 x 2-pin connector for power on/off button
  • Option  VESA Stand 4G LTE/Wi-Fi/BT 4 x USB 2.0 (TB-528U4) 4 x USB 2.0 + 1 x Mini PCIe + 1 SIM slot (TB-528U4ME1) 1 x COM + 2 x USB 2.0 (TB-528C1U2) 1 x COM + 2 x USB 2.0 + 1 x Mini PCIe + 1 x Power Button (TB-528C1U2P1) 2 x COM(RS-232) (TB-528C2) 2 x COM(RS-232) + 1 x Mini PCIe slot + 1 x SIM slot (TB-528C2ME1) 2 x COM(RS-232/485, isolated) (TB-528C2I) 2 x CAN (TB-528CAN2) 1 x LAN + 2 x USB 2.0 (TB-528E1U2) UPS Battery 21W/10.8W/1.95Ah(3S1P)
Storage Space
  • HDD/SSD 1 x 2.5” SATA HDD space (Easily Accessible)
Expansion
  • Expansion Slot 1 x Internal Mini-PCIe slot full size 1 x SIM card holder / Micro SD card reader
Dispalay
Display Type
  •  Standard 21.5” TFT-LCD
  •  High Brightness Optional  21.5” TFT-LCD
Max. Resolution
  • Standard 1920 x 1080
  •  High Brightness Optional 1920 x 1080
Max. Color
  • Standard 16.7M
  •  High Brightness Optional  16.7M
Luminance (cd/m2)
  • Standard 250
  •  High Brightness Optional  1000
View Angle
  • Standard 178(H) /178(V
  •  High Brightness Optional  178(H) /178(V
Contrast
  • Standard 300:1
  •  High Brightness Optional  300:1
Backlight Lifetime
  • Standard  30,000 hrs
  •  High Brightness Optional  50,000 hrs
Touch Screen
  • Type Projected Capacitive Touch (for AP model) Resistive Touch (for AR model) Glass (for AG model)
  • Interface USB
  • Light Transmission  Resistive Touch : 80% Projected Capacitive : 90%
Power
  • Power Input  DC 9~36V
  • Power Consumption FABS-921AP: 64W (MAX)
Mechanical
  • Construction 304 Stainless steel front bezel (Default) 316 Stainless steel front bezel (Optional) Aluminum back cover
  • Mounting Panel mount, VESA mount 100 x 100
  • Dimension 573.8 x 378.8 x 59.8 mm
  • Net Weight 7.8 kg
  • IP Rating Front Panel IP66/IP69K
Environmental
  • Operating Temperature  0~50˚C
  • Storage Temperature   -30~70 °C
  • Storage Humidity  10~90% @40 °C non-condensing
  • Certificate   CE / FCC Class A for P/G/R model EN 1672-2 compliant for P/G model
Operating System Support
  • AWindows 10 IoT Enterprise
Ordering Information
  • FABS-921AR/P (Barebone)  21.5" Full HD fanless HMI barebone with Intel 6th Corei3-6100U CPU, DDR4 SO-DIMM Socket, Projected Capacitive /Resistive touch, 9~36VDC input with adapter, Stainless front bezel and Aluminum chassis.
  • FABS-921AG (Barebone)  21.5" Full HD fanless HMI barebone with Intel 6th Corei3-6100U CPU, DDR4 SO-DIMM Socket, Glass, 9~36VDC input with adapter, Stainless front bezel and Aluminum chassis.
