FAB- 115P

FAB- 115P

Features

  • Stainless steel front bezel Display
  • Flat front panel touch screen
  • Projected Capacitive Touch or Glass (Option)
  • Wide range DC 9~36V power input
  • IP66 compliant front panel / IP69K for option
  • VGA, DP, DVI/HDMI input
  • OSD on the rear side
  • System Power LED light
  • High brightness LCD for option

Specifications

I/O Port

  • VGA 1 x VGA
  • DVI 1 x DVI-D (share with HDMI)
  • DP 1 x DP
  • HDMI 1 x HDMI (share with DVI-D)
  • Audio 1 x Audio line-in phone jack
  • OSD Control Membrane OSD at rear side On board controller, extendable key pad from connector
  • Power 1 x 3-pin terminal block for DC 9~36V power input
  • LED Light 1 x system power LED light
  • Speaker 1 x 2W speaker for option
  • Others  1 x USB type B for touch control Optional I/O: 1 x Speaker

Dispalay

Display Type

  •  Standard  15” TFT LCD
  •  High Brightness Optional  15” TFT LCD

Max. Resolution

  • Standard  1024 x 768
  • High Brightness Optional  1024 x 768

Max. Color

  • Standard 16.2M
  •  High Brightness Optional  16.7M

Luminance (cd/m2)

  • Standard 300
  •  High Brightness Optional  1000

View Angle

  • Standard 176(H) / 176(V)
  •  High Brightness Optional 145(H) / 160(V)

Contrast

  • Standard  200:1
  •  High Brightness Optional  800:1

Backlight Lifetime

  • Standard 50,000 hrs
  •  High Brightness Optional  30,000 hrs

Touch Screen

  • Type Projected Capacitive Touch (For FABS-107P model) Glass-AR (For FABS-107G model)
  • Interface  USB Interface
  • Light Transmission(%)  over 90%

Power

  • Power Input  DC 9~36V
  • Power Consumption TBD

Mechanical

  • Construction Aluminum die-casting chassis
  • Mounting Panel mount / VESA mount 100 x 100

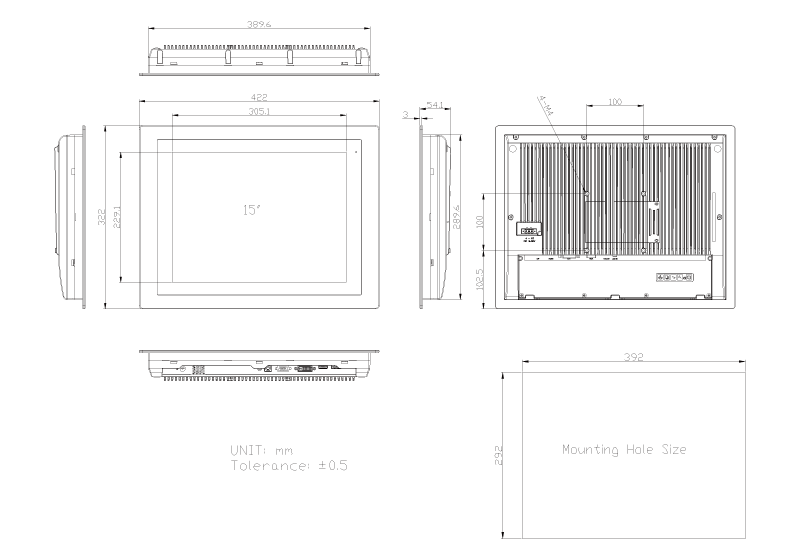

  • Dimension (WxHxD) 422 x 322 x 54.1 mm
  • Net Weight TBD
  • IP Rating IP66 compliant front panel / IP69(option)

Environmental

  • Operating Temperature  0~50°C
  • Storage Temperature   -30~70 °C
  • Storage Humidity  10~90% @40 °C non-condensing
  • Certificate  CE/FCC, Class A
