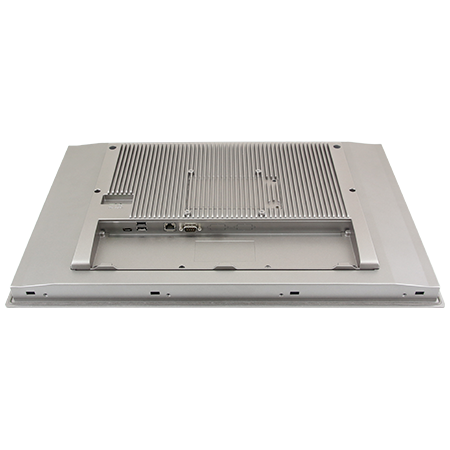

ARMPAC- 621P

Features
ARM Based HMI
Fanless design
Flat front panel touch screen
TI- AM3354, ARM® Cortex™ A8 processor
Onboard 512MB DDR3 SDRAM
Onboard 512MB up to 1GB NAND Flash
DC 9~36V wide-ranging power input
LED backlight LCD
Resistive touch window / Projected capacitive touch
Specifications
System
CPU Freescale i.MX6 Dual Lite,ARM Cortex A9(2x Cores,1.0GHz)
System Chipset   NA
Memory Onboard 512MB DDR3 SDRAM
External IO Port
USB 2 x USB 2.0 type A
Serial / Parallel 1 x RS-232/422/485 DB9 , default RS-232
LAN 1 x 10/100MB LAN RJ-45 (POE for option)
Audio 1 x Line-out
Power 1 x 3-pin terminal block connector 1 x 2-pin Power switch connector
Option  TB-508CAN1 TB-508C1
Storage Space
HDD Onboard 512MB NAND Flash (1GB for option)
Movable device 1 x micro SD slot
Expansion
Onboard expansion bus1 x mini-PCIe slot(full size) 1 x Sim Card slot
Dispalay
Display Type 21.5” TFT-LCD
Max. Resolution 1920 x 1080
Max. Color 16.7M
Luminance (cd/m2) 300
View Angle 178(H) /178(V)
Contrast 300:1
Backlight Lifetime 30,000 hrs
Touch Screen
Type Resistive TouchProjected Capacitive Touch (For P model)
Interface ADC (Analog-to-Digital Converter) (Resistive Touch) / USB (Projected Capacitive Touch)
Light Transmission(%) 80%
Power
Power Input  DC 12~36V
Power Consumption ARMPAC-621P: 20W
Mechanical
Construction Aluminum die-casting Chassis
Mounting Panel Mount , VESA mount 100x100
Dimension  557 x 362 x 64.8 mm
Net Weight 7.5 kg
IP Rating IP65 compliant front bezel
Environmental
Operating Temperature  0~50˚C
Storage Temperature   -30~70 °C
Storage Humidity  10~90% @40 °C non-condensing
Certificate   CE/FCC Class A/UL
Operating System Support
Android 6.0.1 / Linux 4.9.88 + Chromium Browser V67
Ordering Information
ARMPAC-621  21.5" FHD fanless HMI barebone with Freescale i.MX6 DualLite ARM Cortex A9,1GB DDR3 RAM,4GB eMMC, Resistive touch, 9~36VDC input with adapter, plastic chassis.
ARMPAC-621P  21.5" FHD fanless HMI barebone with Freescale i.MX6 DualLite ARM Cortex A9,1GB DDR3 RAM,4GB eMMC, Projected capacitive touch, 9~36VDC input with adapter, plastic chassis
