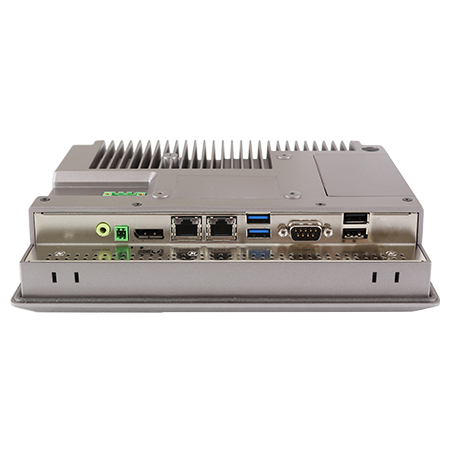

ARCHMI H-808BP

ARCHMI H-808BP

FEATURES
  • 8" Industrial Compact Size Panel PC
  • Intel Celeron J6412 Processor
  • 1 x 260-pin SO-DIMM DDR4 slot, up to 32GB 3200MHz
  • Flat Front Panel Touch Screen with IP66 Front Bezel
  • Support Expansion via Full-size Mini-PCIe and M.2 slots
  • Support TPM2.0 Hardware Security
  • DC 9~36V Wide Range Power Input
  • High Brightness 1,000 nits for option

SPECIFICATIONS
System
  • CPU: Intel Celeron J6412 Processor (2.0 GHz, 1.5MB L2 cache)
  • System Chipset: SoC
  • Memory: 1 x 260-pin SO-DIMM up to 32GB DDR4 3200MHz
  • TPM: TPM2.0

I/O Port
  • USB: 2 x USB 3.2 Gen2 type A 2 x USB 2.0 type A
  • Serial / Parallel: 1 x RS-232/422/485 (Default RS-232; select via BIOS)
  • Audio: 1 x Line-out
  • LAN: 2 x 2.5GbE LAN RJ-45 (I226)
  • DP: 1 x DP, support DP++
  • Power: 1 x 3-pin Terminal Block Connector; 1 x 2-pin Power Switch Connector
  • Option: VESA Stand 4G LTE/Wi-Fi/Bluetooth Auto Dimming

Storage Space
  • Storage: 1 x M.2 B-Key slot; (Support SATA3; 2242)
  • Expansion
  • Onboard Expansion Bus: 1 x Mini-PCIe slot (full size), 1 x M.2 E-key, 1 x Nano SIM Card holder

Display
Standard
  • Display Type: 8" TFT-LCD
  • Max. Resolution: 800 x 600
  • Max. Color: 16.2M
  • Luminance (cd/m2): 450
  • View Angle: 140(H) / 130(V)
  • Contrast: 500:1
  • Backlight Lifetime: 40,000 hrs
High Brightness Optional
  • Display Type: 8" TFT-LCD
  • Max. Resolution: 800 x 600
  • Max. Color: 16.2M
  • Luminance (cd/m2): 1000
  • View Angle: 140(H) / 130(V)
  • Contrast: 500:1
  • Backlight Lifetime: 20,000 hrs

Touch Screen
  • Type: Resistive Touch (for BR Model); Projected Capacitive Touch (for BP Model)
  • Interface: USB
  • Light Resistive Touch:Resistive Touch: 80%; Projected Capacitive Touch: 90%

Power
  • Power Input: DC 9~36V
  • Power Consumption: ARCHMI-808BP/R: 32W

Mechanical
  • Construction: Aluminum Die-casting Chassis
  • Mounting: Panel Mount, VESA 75 x 75
  • Dimensions (WxHxD): 231.1 x 176.1 x 50 mm
  • IP Rating: IP66 Compliant Front Bezel
  • Net Weight: 1.8 kg

Environmental
  • Operating Temperature; 0~50˚C / -20~60˚C (option)
  • Storage Temperature; -30~70˚C
  • Humidity: 10 to 95%@ 40˚C, non-condensing
  • Certificate: CE/FCC cass B/UL

Operating System Support
  • Windows 10 IoT, Windows 11 IoT

Ordering Information
  • ARCHMI-815BR: 8" SVGA fanless HMI barebone with Intel Celeron J6412 processor, 1 x DDR4 slot, Resistive touch screen, 9~36V DC input with adapter, Aluminum chassis.
  • ARCHMI-815BP: 8" SVGA fanless HMI barebone with Intel Celeron J6412 processor, 1 x DDR4 slot, Projected Capacitive touch, 9~36V DC input with adapter, Aluminum chassis.
  • ARCHMI-815BR(H): 8" high brightness SVGA fanless HMI barebone with Intel Celeron J6412 processor, 1 x DDR4 slot, Resistive touch screen, 9~36V DC input with adapter, Aluminum chassis.
  • ARCHMI-815BP(H): 8" high brightness SVGA fanless HMI barebone with Intel Celeron J6412 processor, 1 x DDR4 slot, Projected Capacitive touch, 9~36V DC input with adapter, Aluminum chassis.
