ARCHMI- 815P
Features
- 15” Industrial Compact Size Panel PC
- Flat Front Panel
- Touch Screen and Fanless Design
- DC 9~36V Wide-Ranging Power Input
Intel Celeron N2930(1.83GHz) CPU built-in / Atom E3845(1.91GHz) for option - Onboard 4GB DDR3L 1333MHz/8GB(option)
- IP66 Compliant Front Panel Optional Projected Capacitive Touch Screen Support 7H Anti-Scratch Surface
- High Brightness 1,000 nits for Option
Specifications
System
- CPU Onboard Intel Celeron N2930(1.83GHz) Onboard Intel Atom E3845(1.91GHz) for option
- System Chipset SoC
- Memory Onboard 4GB/8GB(option) DDR3L 1333MHz
I/O Port
- USB 2 x USB 3.0 type A
- Serial / Parallel 1 x DB-9 RS-232/422/485, COM1 (Default RS-232) 1 x RS-232 DB-9, COM2
- Audio 1 x Audio Line Out
- LAN 2 x GbE LAN RJ-45
- Power 1 x 3-pin DC power input terminal 1 x 2-pin connector for power on/off button
- Option VESA Stand 4G LTE/Wi-Fi/BT 4 x USB 2.0 (TB-528U4) 4 x USB 2.0 + 1 x Mini PCIe + 1 x SIM slot (TB-528U4ME1) 1 x COM + 2 x USB 2.0 (TB-528C1U2) 1 x COM (RS-232) + 2 x USB 2.0 + 1 x Power Button (TB-528C1U2P1) 2 x COM (TB-528C2) 2 x COM +1 x Mini PCIe slot + 1 x SIM slot (TB-528C2ME1) 2 x COM (RS-232/485, isolated) (TB-528C2I) 2 x CAN (TB-528CAN2) 1 x LAN + 2 x USB 2.0 (TB-528E1U2) 1 x LAN + 2 x USB 2.0/45W PoE (TB-528E1U2UPOE) UPS Battery 21W/10.8W/1.95Ah(3S1P) System is only allowed to build in either I/O board TB-528 series or UPS battery
Storage Space
- HDD 1 x 2.5" SATA HDD bay for SATA HDD (Easy Accessible)
Expansion
- Expansion Slot 1 x Internal Mini-PCIe slot full size 1 x SIM card holder / Micro SD card reader
Dispalay
Display Type
- Standard 15” TFT-LCD
- High Brightness Optional 15” TFT-LCD
Max. Resolution
- Standard 1024 x 768
- High Brightness Optional 1024 x 768
Max. Color
- Standard 16.2M
- High Brightness Optional 16.7M
Luminance (cd/m2)
- Standard 300
- High Brightness Optional 1000
View Angle
- Standard 176(H) / 176(V)
- High Brightness Optional 160(H) / 150(V)
Contrast
- Standard 2000:1
- High Brightness Optional 800:1
Backlight Lifetime
- Standard 70,000 hrs
- High Brightness Optional 50,000 hrs
Touch Screen
- Type Resistive Touch (for R Model) Projected Capacitive Touch (for P Model) Glass (for G model)
- Interface USB
- Light Transmission(%) Resistive Touch Window: over 80% Projected Capacitive Touch: over 90
- Power
- Power Input DC 9~36V
- Power Consumption ARCHMI-812P: 15W (MAX)
Mechanical
- Color RAL 9007
- Construction Aluminum die-casting chassis
- Mounting Panel Mount, VESA 100 x 100

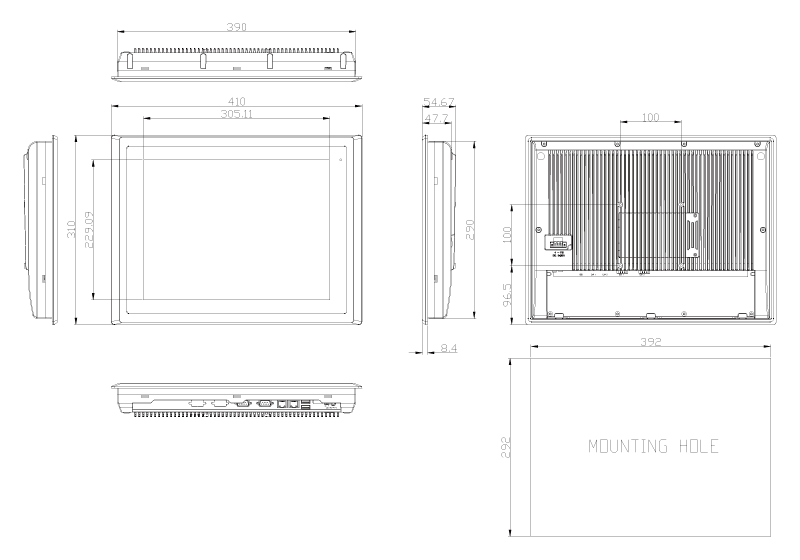

- Dimension 410 x 310 x 54.67 mm
- Net weight(kgs) 4.3 kg
- IP Rating IP66 Compliant Front Bezel
Environmental
- Operating Temperature 0~50°C / -20~60°C (option)
- Storage Temperature -30~70 °C
- Storage Humidity 10~90% @40 °C non-condensing
- Certificate Meet CE/FCC Class A
Operating System Support
- Windows 10 IoT Enterprise
Ordering Information
- ARCHMI-815 15" XGA Fanless HMI barebone with Intel N2930 1.83G CPU, 2GB DDR3L RAM, Resistive touch screen, DC 9~36V input with adapter, Aluminum chassis
- ARCHMI-815P 15" XGA Fanless HMI barebone with Intel N2930 1.83G CPU,2GB DDR3L RAM, Projected Capacitive touch screen, DC 9~36V input with adapter, Aluminum chassis
- ARCHMI-815H 15" XGA fanless HMI barebone with Celeron N2930(1.83.GHz ) CPU, 4GB DDR3L RAM, Resistive touch screen, DC 9~36V input with adapter, Aluminum chassis, 1,000 nits LCD
- ARCHMI-815PH 15" XGA fanless HMI barebone with Celeron N2930(1.83.GHz ) CPU, 4GB DDR3L RAM, Projected Capacitive touch, DC 9~36V input with adapter, Aluminum chassis, 1,000 nits LCD
