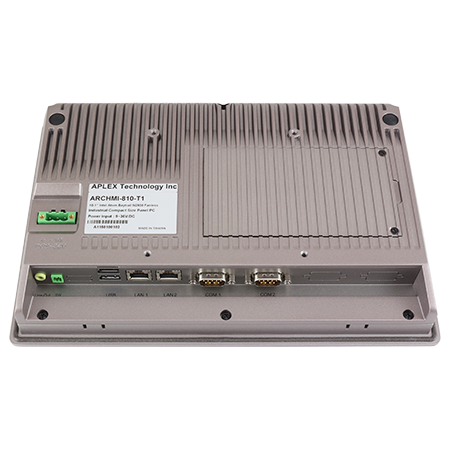

ARCHMI- 810P

ARCHMI- 810P

Features
  • 10.1” Industrial Compact Size Panel PC
  • Flat Front Panel
  • Touch Screen and Fanless Design
  • DC 9~36V Wide-Ranging Power Input
    Intel Celeron N2930(1.83GHz) CPU built-in / Atom E3845(1.91GHz) for option
  • Onboard 4GB DDR3L 1333MHz/8GB(option)
  • IP66 Compliant Front Panel Optional Projected Capacitive Touch Screen Support 7H Anti-Scratch Surface
  • High Brightness 1,000 nits for Option
Specifications
System
  • CPU  Onboard Intel Celeron N2930(1.83GHz) Onboard Intel Atom E3845(1.91GHz) for option
  • System Chipset   SoC
  • Memory Onboard 4GB/8GB(option) DDR3L 1333MHz
I/O Port
  • USB 2 x USB 3.0 type A
  • Serial / Parallel 1 x DB-9 RS-232/422/485, COM1 (Default RS-232) 1 x RS-232 DB-9, COM2
  • Audio 1 x Audio Line Out
  • LAN 2 x GbE LAN RJ-45
  • Power  1 x 3-pin DC power input terminal 1 x 2-pin connector for power on/off button
  • Option VESA Stand 4G LTE/Wi-Fi/BT 4 x USB 2.0 (TB-528U4) 4 x USB 2.0 1 x Mini PCIe 1 x SIM slot (TB-528U4ME1) 1 x COM 2 x USB 2.0 (TB-528C1U2) 1 x COM (RS-232) 2 x USB 2.0 1 x Power Button (TB-528C1U2P1) 2 x COM (TB-528C2) 2 x COM 1 x Mini PCIe slot 1 x SIM slot (TB-528C2ME1) 2 x COM (RS-232/485, isolated) (TB-528C2I) 2 x CAN (TB-528CAN2) 1 x LAN 2 x USB 2.0 (TB-528E1U2) 1 x LAN 2 x USB 2.0, 25W PoE (TB-528E1U2POE) 1 x LAN 2 x USB 2.0, 25W (TB-528NE1U2POE) UPS Battery 21W/10.8W/1.95Ah(3S1P) System is only allowed to build in either I/O board TB-528 series or UPS battery
Storage Space
  • HDD 1 x 2.5" SATA HDD bay for SATA HDD (Easy Accessible)
Expansion
  • Expansion Slot 1 x Internal Mini-PCIe slot full size 1 x SIM card holder / Micro SD card reader
Dispalay
Display Type
  • Standard 10.1” TFT-LCD
  •  High Brightness Optional  10.1” TFT-LCD
Max. Resolution
  • Standard  1280 x 800
  • High Brightness Optional  1280 x 800
Max. Color
  • Standard  16.7M
  •  High Brightness Optional  16.7M
Luminance (cd/m2)
  • Standard  350
  •  High Brightness Optional  1000
View Angle
  • Standard  170(H) / 170(V)
  •  High Brightness Optional  170(H) / 170(V)
Contrast
  • Standard  800:1
  • High Brightness Optional  100:1
Backlight Lifetime
  • Standard  25,000 hrs hrs
  •  High Brightness Optional  50,000 hrs
Touch Screen
  • Type Resistive Touch (for R Model) Projected Capacitive Touch (for P Model) Glass (for G model)
  • Interface USB
  • Light Transmission(%) Resistive Touch Window: over 80% Projected Capacitive Touch: over 90
  • Power
  • Power Input  DC 9~36V
  • Power Consumption ARCHMI-810P: 14W (MAX)
Mechanical
  • Color RAL 9007
  • Construction Aluminum die-casting chassis
  • Mounting Panel Mount, VESA 100 x 100
  • Dimension   285mm x 189mm x 48.9mm
  • Net weight(kgs)  2 kg
  • IP Rating IP66 Compliant Front Bezel
Environmental
  • Operating Temperature  0~50°C / -20~60°C (option)
  • Storage Temperature   -30~70 °C
  • Storage Humidity  10~90% @40 °C non-condensing
  • Certificate   Meet CE/FCC Class A
Operating System Support
  • Windows 10 IoT Enterprise
Ordering Information
  • ARCHMI-810 10.1" WXGA fanless HMI barebone with Celeron N2930 1.83G CPU, 2GB DDR3L RAM, Resistive touch screen, DC 9~36V input with adapter, Aluminum chassis
  • ARCHMI-810P  10.1" WXGA fanless HMI barebone with Celeron N2930 1.83G CPU, 2GB DDR3L RAM, Projected Capacitive touch screen, DC 9~36V input with adapter, Aluminum chassis
  • ARCHMI-810H  10.1" WXGA fanless HMI barebone with Celeron N2930(1.83.GHz ) CPU, 4GB DDR3L RAM, Resistive touch screen, DC 9~36V input with adapter, Aluminum chassis, 1,000 nits LCD
  • ARCHMI-810PH  10.1" WXGA fanless HMI barebone with Celeron N2930(1.83.GHz ) CPU, 4GB DDR3L RAM, Projected Capacitive touch, DC 9~36V input with adapter, Aluminum chassis, 1,000 nits LCD

click here for details
