ARCHMI- 807AP

ARCHMI- 807AP

Features
  • 7” Industrial Compact Size Panel PC
  • Flat front panel touch screen
  • IP66 compliant front panel
  • Intel Apollo Lake N4200/ N3350 (option)
  • On Board 4GB/ 8GB DDR3L 1600MHz
  • Optional projected capacitive touchscreen support 7H anti-scratch surface
  • DC 9~36V wide-ranging power input
  • High Brightness 1,000 nits for option
Specifications
System
  • CPU  Onboard Intel Apollo Lake N4200 (4 Core, 1.1GHz) / N3350 (2 Core, 1.1GHz) (option)
  • System Chipset   SoC
  • Memory Onboard 4GB/ 8GB (option) DDR3L 1600MHz
I/O Port
  • USB 2 x USB 3.0 type A
  • Serial / Parallel 1 x DB-9 RS-232/422/485, COM1 (Default RS-232) 1 x RS-232 DB-9, COM2
  • Audio 1 x Audio Line Out
  • LAN 2 x GbE LAN RJ-45
  • Power  1 x 3-pin DC power input terminal 1 x 2-pin connector for power on/off
  • Option VESA Stand 4G LTE/Wi-Fi/BT
Storage Space
  • HDD 1 x MO-297 SATA SSD bay (Easy Accessible)
Expansion
  • Expansion Slot 1 x Internal Mini-PCIe slot full size 1 x SIM card holder / Micro SD card readerDispalay
Display Type
  • Standard 7” TFT-LCD
  • High Brightness Optional  7” TFT-LCD
Max. Resolution
  • Standard 800 x 480
  • High Brightness Optional  800 x 480
Max. Color
  • Standard  262K
  • High Brightness Optional  262K
Luminance (cd/m2)
  • Standard  350
  •  High Brightness Optional  1000
View Angle
  • Standard  140(H) / 120(V)
  • High Brightness Optional 140(H) / 130(V)
Contrast
  • Standard 400:1
  • High Brightness Optional  400:1
Backlight Lifetime
  • Standard 50,000 hrs
  •  High Brightness Optional  50,000 hrs
Touch Screen
  • Type  Resistive Touch (for AR Model) Projected Capacitive Touch (for AP Model) Glass (for AG model)
  • Interface USB
  • Light Transmission(%) Resistive Touch Window: over 80% Projected Capacitive Touch: over 90%
Power
  • Power Input  DC 9~36V
  • Power Consumption ARCHMI-807AP: 27W (MAX)
Mechanical
  • Color RAL 9007
  • Construction Aluminum die-casting chassis
  • Mounting Panel Mount, VESA 75 x 75

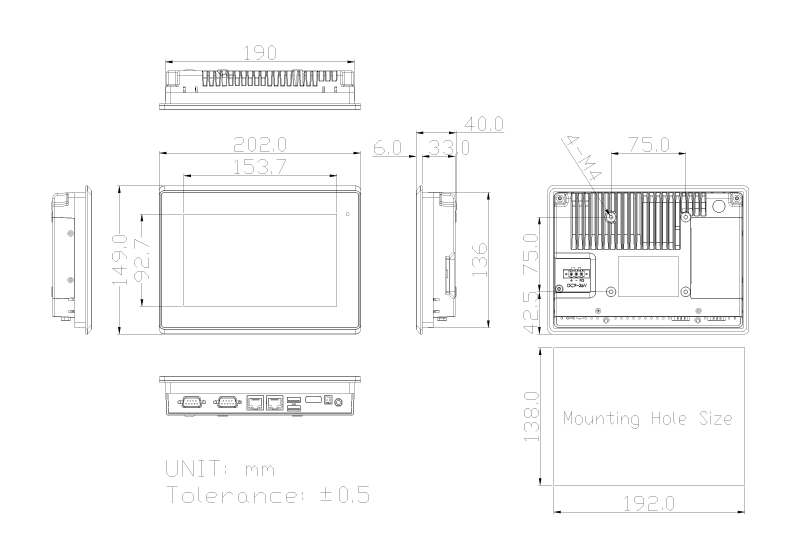

  • Dimension   202mm x 149mm x 40mm
  • Net weight(kgs) 1.1 kg
  • IP Rating IP66 Compliant Front Bezel
Environmental
  • Operating Temperature  0~50°C / -20~60°C (option)
  • Storage Temperature   -30~70 °C
  • Storage Humidity  10~90% @40 °C non-condensing
  • Certificate   Meet CE/FCC Class A
Operating System Support
  • Windows 10 IoT Enterprise
