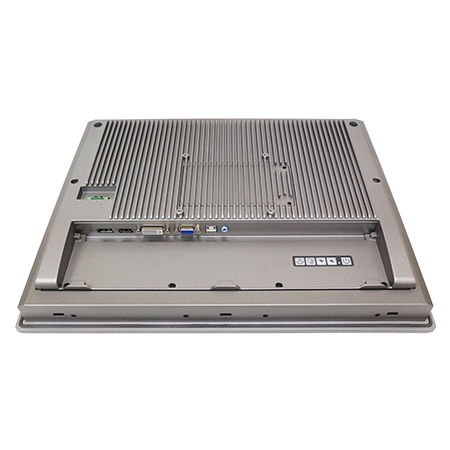

ARCDIS- 117AP

ARCDIS- 117AP

Features
  • Industrial Display
  • Flat front panel touch screen
  • Fanless design
  • Wide range DC 9~36V power input
  • IP66 compliant front panel
  • VGA/DVI-D/HDMI/DP input
  • System power LED light
  • High Brightness LCD and Auto Dimming for option
  • Support protective AR glass for option (non-touch version)
Specifications
I/O Port
  • VGA 1 x VGA
  • DVI 1 x DVI-D (share with HDMI)
  • DP 1 x DP
  • HDMI 1 x HDMI (share with DVI-D)
  • OSD Control Membrane OSD at rear side
  • Power 1 x 3-pin terminal block for DC 9~36V power input
  • LED Light 1 x system power LED light
  • Speaker 1 x 2W speaker for option
  • Others1 x USB type B for touch control Optional I/O: 1 x Speaker 1 x RS-232 DB-9 for touch control
Dispalay
Display Type
  •  Standard  17” TFT LCD
  •  High Brightness Optional  17” TFT LCD
Max. Resolution
  • Standard 1280 x 1024
  • High Brightness Optional  1280 x 1024
Max. Color
  • Standard 16.2M
  •  High Brightness Optional  16.7M
Luminance (cd/m2)
  • Standard 350
  •  High Brightness Optional  1000
View Angle
  • Standard 170(H) / 160(V)
  •  High Brightness Optional 170(H) / 160(V)
Contrast
  • Standard  100:1
  •  High Brightness Optional  00:1
Backlight Lifetime
  • Standard  30,000 hrs
  •  High Brightness Optional  50,000 hrs
Touch Screen
  • Type Resistive Touch (for AR Model) Projected Capacitive Touch (for AP Model) Glass (for AG model)
  • Interface  USB default (Resistive / Projected Capacitive Touch) RS-232 Option (Resistive Touch)
  • Light Transmission(%) Resistive Touch :  over 80% Projected Capacitive Touch :  over 90%
Power
  • Power Input  DC 9~36V
  • Power Consumption ARCDIS-117AP: 11W (MAX)
Mechanical
  • Construction Aluminum front bezel/ Aluminum die-casting for back cover
  • Mounting Panel mount / VESA mount 100 x 100
  • Dimension 439 x 348 x 64.8 mm
  • Net Weight 6kg
  • IP Rating IP66 compliant front panel
Environmental
  • Operating Temperature  0~50°C / -20~60°C for option
  • Storage Temperature   -30~70 °C
  • Storage Humidity  10~90% @40 °C non-condensing
  • Certificate  CE/FCC, Class A
Ordering Information
  • ARCDIS-117AR  17” SXGA FPD Industrial display, Resistive touch window, VGA, DVI-D, HDMI, and DP input, 5 keys Rear OSD, DC 9~36V power input with adapter, Aluminum Die-casting Chassis
  • ARCDIS-117AP  17” SXGA FPD Industrial display, Projected Capacitive touch screen, VGA, DVI-D, HDMI, and DP input, 5 keys Rear OSD, DC 9~36V power input with adapter, Aluminum Die-casting Chassis
