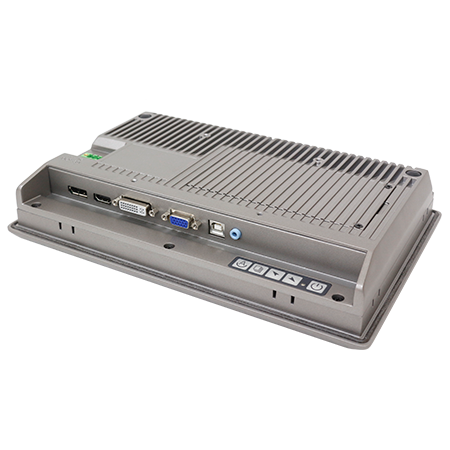

ARCDIS- 110AP

ARCDIS- 110AP

Features

  • Solid aluminum die-casting chassis
  • VGA, DVI, HDMI and DP input
  • Wide range DC 9~36V power input
  • Variety of LCD panel size selections
  • IP66 compliant front panel

Specifications

I/O Port

  • VGA 1 x VGA
  • DVI 1 x DVI-D (share with HDMI)
  • DP 1 x DP
  • HDMI 1 x HDMI (share with DVI-D)
  • OSD Control Membrane OSD at rear side
  • Power 1 x 3-pin terminal block for DC 9~36V power input
  • LED Light 1 x system power LED light
  • Speaker 1 x 2W speaker for option
  • Others1 x USB type B for touch control Optional I/O: 1 x Speaker 1 x RS-232 DB-9 for touch control

Dispalay

Display Type

  •  Standard  10.1” TFT LCD
  •  High Brightness Optional  10.1” TFT LCD

Max. Resolution

  • Standard 1280 x 800
  • High Brightness Optional  1280 x 800

Max. Color

  • Standard 16.7M
  •  High Brightness Optional  16.7M

Luminance (cd/m2)

  • Standard 350
  •  High Brightness Optional  1000

View Angle

  • Standard 170(H) / 170(V)
  •  High Brightness Optional 170(H) / 170(V)

Contrast

  • Standard  8000:1
  •  High Brightness Optional  100:1

Backlight Lifetime

  • Standard  25,000 hrs
  •  High Brightness Optional  50,000 hrs

Touch Screen

  • Type Resistive Touch (for AR Model) Projected Capacitive Touch (for AP Model) Glass (for AG model)
  • Interface  USB default (Resistive / Projected Capacitive Touch) RS-232 Option (Resistive Touch)
  • Light Transmission(%) Resistive Touch :  over 80% Projected Capacitive Touch :  over 90%

Power

  • Power Input  DC 9~36V
  • Power Consumption ARCDIS-110AP: 5.1W (MAX)

Mechanical

  • Construction Aluminum die-casting chassis
  • Mounting Panel mount / VESA mount 100 x 100
  • Dimension 285 x 189 x 48.9 mm
  • Net Weight 1.9 kg
  • IP Rating IP66 compliant front panel

Environmental

  • Operating Temperature  0~50°C / -20~60°C for option
  • Storage Temperature   -30~70 °C
  • Storage Humidity  10~90% @40 °C non-condensing
  • Certificate  CE/FCC, Class A

Ordering Information

  • ARCDIS-110AR  10.1" FPD Industrial display, Resistive touch window, VGA, DVI, HDMI, and DP input, 5 keys Rear OSD, DC 9~36V power input with adapter, Aluminum Diecasting Chassis
  • ARCDIS-110AP  10.1" FPD Industrial display, Projected Capacitive touch screen, VGA, DVI, HDMI, and DP input, 5 keys Rear OSD, DC 9~36V power input with adapter, Aluminum Die-casting Chassis
