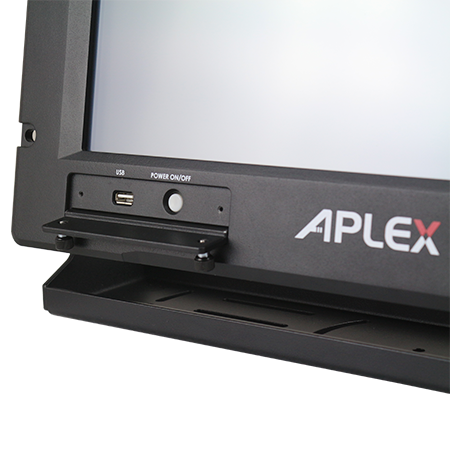

APC-3420

APC-3420

Features
  • 24” color TFT LCD
  • Aluminum (10mm) Bezel and Alu. housing (with Anti-Corrosion Coating)
  • Intel Core 4th Gen i3/i5/i7 Processor
  • 4G DDR3L on board
  • 1 x 2.5” HDD space
  • 1 x SD slot on board and 1 x CF slot (Option)
  • 9~36V DC Power Input with isolated
  • CE/FCC/IEC 60945 certificated
  • Marine Application
Specifications
System
  • Processor  Intel Core i3-4010U Processor (3M Cache, 1.7 GHz) / TDP:15W Intel Core i5-4300U Processor (3M Cache, 2.9 GHz) / TDP:15W
  • System Chipset SOC
  • System Memory   Onboard 4GB DDR3L 1333/1600 MHz
  • Storage  Default : 1 x 2.5” HDD space 1 x Internal SD slot on board Optional : 1 x Internal CF slot
IO Port
  • USB   2 x USB 3.0 type A
  •  Serial/Parallel  1 x RS-232/422/485 selectable default RS-485 DB9 (COM 1) 1 x RS-232 DB9 (COM 2) 1 x HDMI with Cover 1 x Line-out, phone jack 1 x ESD ground
  • LAN  2 x GbE RJ-45
  • Power  1 x 2 pin terminal block connector (for remote power switch) 1 x 3 pin terminal block connector
  • Front Side I/O 1 x Backlight on/off with touch on/off 1 x Power System LED 1 x VR knob Brightness Control 1 x Power on/off button (option) 2 x LED light for power and HDD indication (option) 1 x USB Port with Waterproof Cover Design (option)
Expansion
  • On board expansion bus 1 x Mini PCIe full size slot on board Option wifi/BT or 3G with Antenna 1 x Mini PCIe full size slot on board Option isolation 2 x RS-422/485 isolation
Display
Display Type   24” TFT-LCD
Max. Resolution  1920 x 1080
Max. Color   16.7M
Contrast Ratio 3000:1
Luminance (cd/m2)   300
View Angle    H: 178 / V: 178
Backlight Lifetime    50,000 hrs
Touch Screen
Type  Resistive Touch Window
Interface  USB
transmission (%)    80%
Power
  • Power input  9~36V DC with isolated / AC power option
  • Power Consumption Max: 37.2W
Mechanical
  • Chassis Color  Black/ Aluminum(10mm) bezel and Aluminum housing Anti-Corrosion Coating
  • IP rating  Total IP66
  • Mounting  Panel Mount and Front access mount Mounting bracket (option)
  • Dimension(mm)  647 x 414 x 65 mm
  • Net weight(Kgs)  11.7 kgs
Environment
  • Operating temperature(°C)  0~50°C WT1: -20°C~60°C for option
  • Storage temperature(°C)   -30~80°C
  • Storage humidity  10 to 90% @ 40°C, non- condensing
  • Certification   CE / FCC Class A / MIL810F / IEC60068-2-27 for vibration / Shock
Operating System Support
  • Windows 7 Professional for Embedded Systems
  • Windows 7 Ultimate for Embedded Systems
  • Windows Embedded 8.1 Pro
  •  Windows Embedded 8.1
  • Industry Pro Windows 10 IOT 2016
Ordering Information
  • APC-3420-01  24” FHD Marine panel PC bare bone, Intel Core i3-4010U 1.7GHz processor, 4G DDR3, 2.5” SATA2 320G Industrial HDD, with resistive touch, DC 9~36V power input with Adaptor, Aluminum(10mm) bezel and Aluminum enclosure
  • APC-3420-02 24” FHD Marine panel PC bare bone, Intel Core i5-4300U 2.9GHz processor, 4G DDR3, 2.5” SATA2 320G Industrial HDD, with resistive touch, DC 9~36V power input with Adaptor, Aluminum(10mm) bezel and Aluminum enclosure
