APC-3103M

APC-3103M

Features
  • 10.1”LCD Panel, optional high brightness LED backlight LCD
  • NXP i.MX8M Quad Plus Processor
  • Fanless design
  • Total IP66 with ISOBUS connectors
  • Operating system: Android 10.0
  • Wide range DC 9~60V power input
  • CE/FCC/E Mark
Specifications
System
  • CPU  NXP i.MX8M Quad Plus, 4x Cortex-A53 1.8 GHz
  • Memory  Onboard 4GB DDR4-1200MHz SDRAM
  • Speaker 2 x 2W IP65 Speaker
IO Port
  • Standard I/O

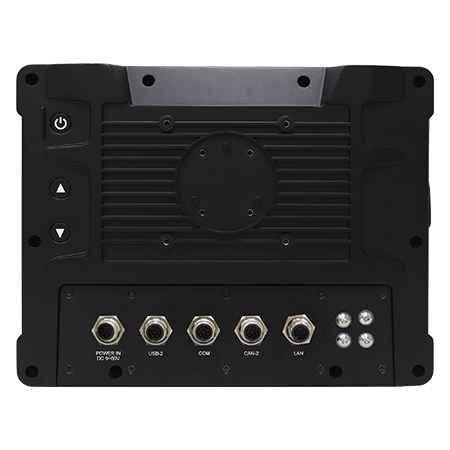

    M12 Connectors: 1 x M12 Male, 4-pin for 9~60VDC input 1 x M12 Female, 8-pin for 2 x USB2.0 1 x M12 Female, 8-pin for RS-232/422/485 1 x M12 Female, 8-pin for 2-ch CAN BUS 1 x M12 Female, 8-pin for 1 x GbE LAN
Storage Space
  • Storage Onboard 32GB eMMC NAND Flash 1 x Micro SD
Expansion
  • Expansion Slot 1 x Full-size mini-PCIe socket (USB2.0) for HSUPA/LTE Module (optional) 1 x Full-size mini-PCIe socket (PCIe+USB2.0) for WIFI/BT Module (optional)
Display
Display Type 10.1" TFT-LCD
Max. Resolution 1280 x 800
Max. Color 16.7M
Luminance (cd/m2 ) 350 nits, 1000 nits for option
View Angle 170(H) / 170(V)
Contrast 800:1
Backlight Lifetime 50,000 hrs
Touch Screen
Type  Projected Capacitive Touch (default) Resistive Touch (option)
Interface  USB
transmission (%) Projected Capacitive Touch: over 90% Resistive Touch: over 80%
Power
  • Power Input DC 9~60V
  • Optional Power DC 9~60V + Ignition / VCC Power
  • Power Consumption MAX : 16W
Mechanical
  • Construction Engineering Plastic front/rear bezel
  • Mounting Support VESA mount 75 x 75, RAM Mount (2.25" Rubber Ball "D" Size), Yoke mount (optional)
  • Dimensions 269 x 210 x 42 mm
  • Net Weight 1.5 kg
Environment
  • Operating Temperature 0~50°C WT1: -20°C~60°C for option, WT2 : -20~70°C for option
  • Storage Temperature -30~80°C
  • Humidity 10 to 90% @ 40°C, non-condensing
  • Certificate Certificate CE/FCC Class A, MIL-STD-810H for vibration/ Shock, E MARK
Operating System Support
  • Android 10.0
Ordering Information
  • APC-3103MP 10.1” WXGA total IP66 design plastic panel PC, NXP iMX8M Quad Plus Processor, DDR4 4G on board, 32G eMMC, M12 connectors, with projected capacitive touch, wide range 9~60V DC power input
