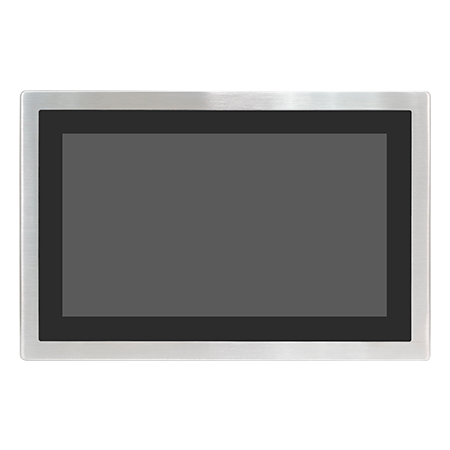

AEx- 816AP

AEx- 816AP

Features
15.6" TFT-LCD
Intel Celeron Processor N2930
SUS 316 Stainless Steel
Total IP66 Grade with M12 Waterproof  Connector
Variety of IO applications
Wide range DC 9~36V Power Input
Support Panel Mount & VESA Mount
Support Projected Capacitive Touch
Full Flat Bezel and Fanless Design
ATEX Zone2, IECEx and C1D2 Certified
Specification
System
  • CPU Onboard Intel Celeron N2930 Processor (2M Cache,1.83GHz)
  • System Chipset SoC
  • Memory Onboard 4GB/8GB DDR3L 1333MHz
IO Port
  • USB 1 x M12 8-pin for 2 x USB 2.0 with waterproof cover and chain
  • Serial / Parallel 1 x M12 8-pin for COM1, RS-232/422/485, default RS-232, with waterproof cover and chain
  • LAN 2 x M12 8-pin for LAN with waterproof cover and chain
  • Graph 1 x M12 8-pin for VGA with waterproof cover and chain Power
  • 1 x M12 3-pin for DC power connector with waterproof cover and chain
Storage Space
  • HDD 1 x 2.5” HDD or SSD space 1 x mSATA space
  • Movable Device 1 x Internal SD Card
Expansion
  • Expansion slot 1 x Mini-PCIe (full size)
Dispalay
Display Type 15.6” TFT-LCD
Max. Resolution 1920 x 1080
Max. Color 16.2M
Luminance (cd/m2) 400
View Angle 160(H) /140(V)
Contrast 700:1
Backlight Lifetime 50,000 hrs
Touch Screen
  • Type Projected Capacitive Touch
  • Interface USB
  • Light Transmission(%) 90%
Power
  • Power Input DC 9~36V
  • Power Consumption AEx-816P: 23W
Mechanical
  • Construction 316 stainless steel chassis
  • Mounting VESA mount 100 x 100, Panel mount (option)
  • IP Rating Total IP66
  • Dimensions 440 x 290 x 75 mm
  • Net Weight 10 kg
Environmental
  • Operating Temperature 0~50°C / -20~60°C(option)
  • Storage Temperature -30~70°C
  • Humidity 10 to 95% @ 40°C, non- condensing
  • Safety CSA C22.2 No.61010
  • Certificate CE / FCC Class A, ATEX Zone2 Ex nA ic IIC T4 Gc Class I, Division2, Group ABCD T4 ANSI/ISA 12.12.01-2013 CSA Std. C22.2 No213-1987
Operating System
  • Support Windows embedded 7
  • Windows embedded 8.1
  • Windows 10 IoT ENT LTSB
Ordering Information
  • AEX-816P15.6" FHD IP66 Intel Celeron N2930 1.8G CPU fan less panel PC, 4GB DDR3L memory on board, 1 x 128GB 2.5" MLC SSD, 1 x 64GB mSATA GMLC SSD, Projected capacitive touch, DC9~36V power input with power adapter, 316 stainless steel enclosure, support VESA Mount, WT-20~60 Accessary : 1 x M12 for 2 x USB2.0 Cable, 2 x M12 LAN cable, 1 x M12 COM Cable, 1 x VGA Cable, 1 x 3pin power input cable (w/o Adapter)
