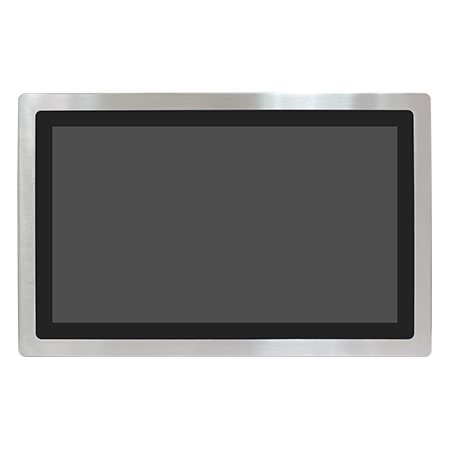

AEx- 121P
Features
- SUS 316 Stainless Steel
- Total IP66 Grade with M12 Waterproof Connector
- Wide range DC 9~36V Power Input
- Support Panel Mount & VESA Mount
- Support Projected Capacitive Touch
- Full Flat Bezel and Fanless Design
- Stainless Steel OSD Function Key
- IECEx Certification: Ex nA ic IIC T4 Gc C1D2 Certification
- IECEx Certification: Ex nA ic IIC T4 GcC1D2 Certification: Class I, Division 2, Groups A, B, C, D T4 ATEX
- Certification: II 3 G
Specification
External I/O
- USB 1 x M12 8-pin for 2 x USB 2.0 for Touch Control with waterproof cover and chain
- Graph 1 x M12 12-pin for VGA with waterproof cover and chain Function Keypad 1 x M12 8-pin for OSD Cable & External OSD BOX with
- Power 1 x M12 3-pin for DC power connector with waterproof cover and chain
Dispalay
- Display Type 21.5” TFT-LCD
- Max. Resolution 1920 x 1080
- Max. Color 16.7M
- Luminance (cd/m2) 300
- View Angle 178(H) /178(V)
- Contrast 5000:1
- Backlight Lifetime 50,000 hrs
Touch Screen
- Type Projected Capacitive Touch
- Interface USB
- Light Transmission(%) 90%
Power
- Power Input DC 9~36V
- Power Consumption AEx-121P: 24W
Mechanical
- Construction 316 stainless steel chassis
- Mounting VESA mount 100 x 100, Panel mount (option)
- IP Rating Total IP66
- Dimensions 571 x 362 x 75.1 mm
- Net Weight 12.3 kg
Environmental
- Operating Temperature -20~60°C
- Storage Temperature -30~70°C
- Humidity 10 to 95% @ 40°C, non-condensing
- Safety CSA C22.2 No.61010
- Certificate CE / FCC Class A, ATEX Zone2 Ex nA ic IIC T4 Gc Class I, Division2, Group ABCD T4 ANSI/ISA 12.12.01-2013 CSA Std. C22.2 No213-1987
Ordering Information
- AEX-121P 21.5" FHD IP66, 316 Stainless display, VGA input, external OSD box, Projected capacitive touch, 9~36V DC Power input, VESA Mount, WT-20~60 Accessary : 1 x M12 for USB touch cable, 1 x VGA Cable, 1 x 3pin power input cable (w/o Adapter)
