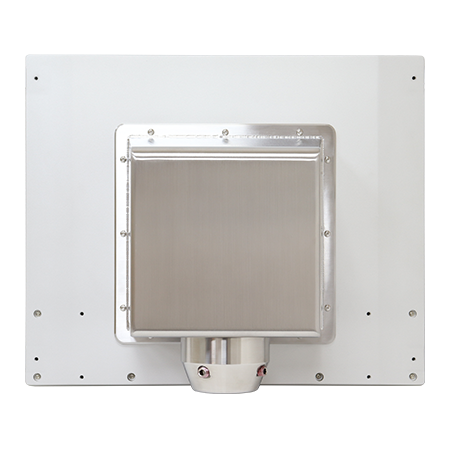

ABOS-916CP

FEATURES
15.6” Full HD TFT LED LCD
Intel 11th Gen. (Tiger Lake-UP3) Processors
Support Projected Capacitive Touch
Built-in RAFI FS22+ Functional Buttons for Intuitive Operation
Top/Bottom Swing Arm Mounting
IP65 Full Sealed with Swing Arm Kit
Gap free Sealing and Slim Front Frame Architecture at Front Bezel
DC 9~36V Wide Range Power Input

SPECIFICATIONS
System
CPU Intel 11th Gen. (Tiger Lake-UP3) Processors
i3-1115G4E (2C, 2.2GHz), Defaut
i5-1145G7E (4C, 1.5GHz), Option
System Chipset SoC
Memory 2 x DDR4-3200MHz SO-DIMM slot, up to 64GB
TPM TPM 2.0

I/O Port
USB 4 x USB 3.2 Gen 2 Type-A
1 x USB 3.2 Gen 2 Type-C
Display out 2 x DP 1.4a
1 x HDMI 2.0b
Serial / Parallel 1 x COM1 (RS-232/422/485) (default)
     1 x COM2 (RS-232/422/485, supports 5V/12V/RI)(optional)
LAN 1 x Intel i219LM, RJ45 GbE LAN
1 x Intel i225LM, RJ45 2.5GbE LAN
Power 1 x 3-pin Phoenix Connector for DC power
1 x Power Button with Light

Front I/O and Buttons
Functional Buttons
     1 x Emergency Button (default)
     Default: 1 x BLUE (reset) / 1 x RED (stop) / 1 x GREEN (start)
     Optional: 3 x BLACK (self-defined) / 1 x Key Switch
USB 1 x USB 2.0 Type-A

Storage Space
Expansion Slot: 1 x Full-size mini-PCIe socket (USB2.0) for HSUPA/LTEModule (for option)1 x Full-size mini-PCIe socket (PCIe+USB2.0) for WIFI/BTModule (for option)
Other: 1 x RFID Module (for option)1 x Ambient Light Sensor (for option)1 x 5MP Camera (for option)

Storage Space
HDD/SSD 1 x M.2 2280 M-key (PCIe x4) slot for PCIe/NVMe SSD
On board expansion bus
      1 x Full size mSATA/mPCIe slot (mPCIe as default, select by BIOS )
      1 x M.2 2230 E-key slot for Wi-Fi/BT Module
      1 x Nano SIM card

Touch Screen
Type Projected Capacitive Touch
Interface USB
Light Transmission(%) over 90%

Power
Power Input DC 9~36V
Power Consumption MAX: 36W

Mechanical
Construction Front Bezel: Aluminum CNC
Rear Housing: Stainless 316L
Mounting Swing Arm support Rittal CP-40
IP Rating Full IP65
Dimensions 409.9 x 341.1 x 162 mm
Net Weight 10.23 kg

Environmental
Operating Temperature 0~50°C
Storage Temperature -30~70°C
Humidity 10 to 90% @ 40°C, non-condensing
Certificate Meet CE/FCC Class A / UKCA

Operating System Support
Windows 10 IoT, Windows 11 IoT, Ubuntu

Ordering Information
ABOS-916CP with Swing Arm Kit
15.6" FHD IP65 Aluminum panel pc, Intel 11th Gen. Core i3-1115G4E CPU,
2 x DDR4 slot, 128G TLC SSD/M.2 2280, projected capacitive touch, 9~36V DC
power without Adapter
*Functional Buttons: 1 x Emergency button, 1 x Green button, 1 x Red button,
1 x Blue button, 1 x USB 2.0 (front)
*Back Cover stainless steel 316L support Swing Arm + Rittal CP 40
